Description
ring gear and pinion gear 1973-2000 Chrysler 9.25" 12 BoltChrysler 9. 25" 12 Bolt Gear Package Description Package Includes: (1) Ring and Pinion Gear Set (Choose Ratio Above) (1) Differential Master Install Kit Rigid Axle's OE Dry 2 Cut and aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Our OE Dry 2 Cut ring and pinions are made using a two cut, face hobbed manufacturing process. The advantage to running a 2 Cut gear is how quiet they operate. If you want a guaranteed quiet

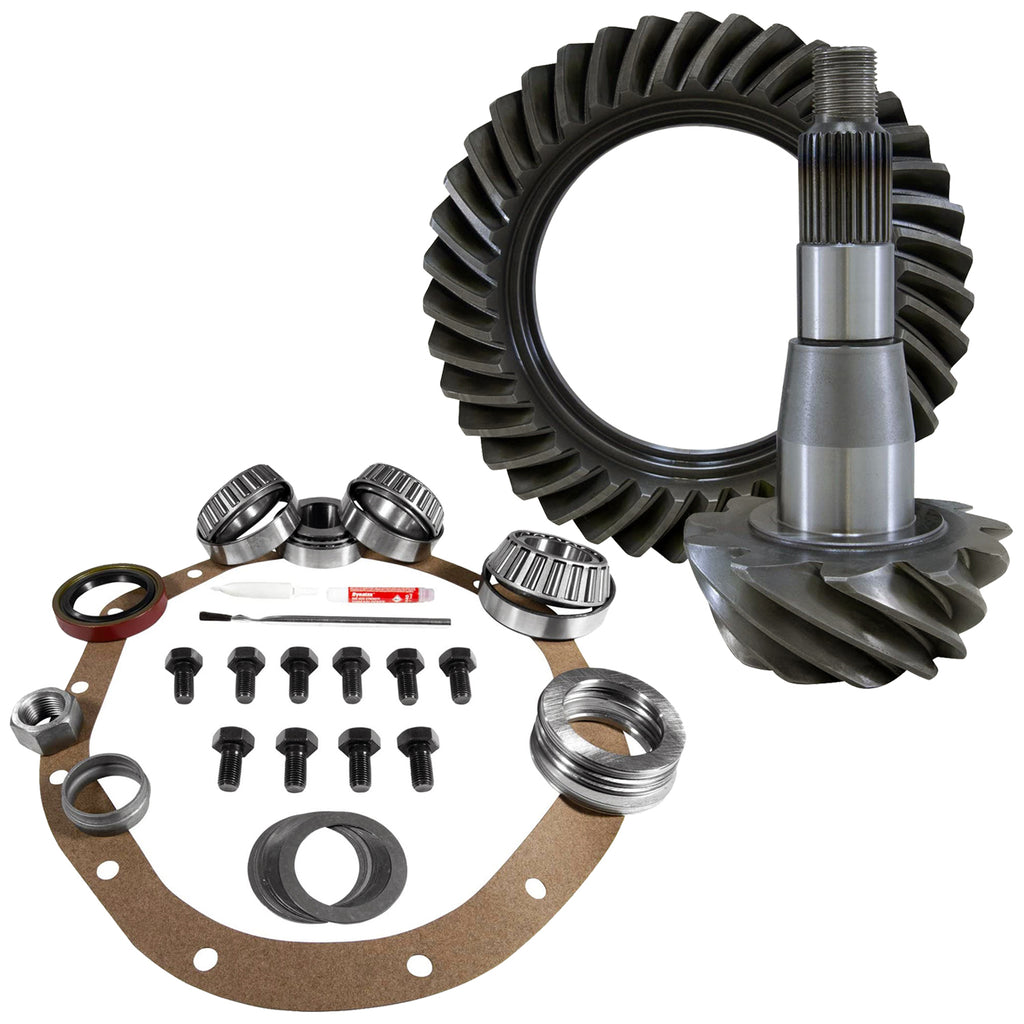

Chrysler 9.25" 12 Bolt Gear Package
Description
Package Includes:
(1) Ring and Pinion Gear Set (Choose Ratio Above)
(1) Differential Master Install Kit
- Rigid Axle's OE Dry 2-Cut and aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Our OE Dry 2-Cut ring and pinions are made using a two-cut, face hobbed manufacturing process. The advantage to running a 2-Cut gear is how quiet they operate. If you want a guaranteed quiet gear, upgrade to our Dry 2-Cut gear set! When these gears are set up properly and rolled with gear marking compound, the pattern will show up slanted. Our aftermarket gear set is made using a five-cut, face milled manufacturing process. Once set up correctly, this will give a square contact pattern on the drive and coast side of each tooth. We are proud of our ring and pinion lines, and you will be too!
* Note: Chrysler 9.25" ring gears may make contact with the OE housing. We recommend you clearance the housing to allow for a 0.020" gap. When running 4.56 or 4.88 ratio gear sets, OE and aftermarket carrier cross shafts will require clearancing in order to install the axle shaft c-clips. When running 3.21 - 4.10/4.11, no clearancing is required!
- Remember to properly break in your new gear set! Click here for instructions!
- Our Master overhaul kits come with everything you need to replace, modify, or rebuild your differential. This will allow you to get the job done quicker, and cheaper at the end of the day. Rigid Axle master bearing install kits include:
- Both (Inner & Outer) High Quality Koyo Pinion Bearings and Races
- High Quality Koyo Carrier Bearings and Races
- Pinion and Carrier Shims
- Pinion Seal
- Pinion Nut
- Ring Gear Bolts
- Crush Sleeve and Preload Shims
- Loctite
- RTV Sealant or Cover Gasket
- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!
Applications
- Chrysler Imperial (1974 - 1981)
- Chrysler New Yorker (1970 - 1982)
- Dodge B100 Dodge Van 1/2 Ton (1970 - 1980)
- Dodge B150 Dodge Van 1/2 Ton (1981 - 1994)
- Dodge B1500 Dodge Van 1/2 Ton (1995 - 1998)
- Dodge B200 Dodge Van 3/4 Ton (1970 - 1981)
- Dodge B250 Dodge Van 3/4 Ton (1981 - 1994)
- Dodge B2500 Dodge Van 3/4 Ton (1995 - 1998)
- Dodge B300 Dodge Van 1 Ton (1970 - 1980)
- Dodge B350 Dodge Van 1 Ton (1981 - 1994)
- Dodge B3500 Dodge Van 1 Ton (1995 - 1998)
- Dodge Challenger (1973 - 1974)
- Dodge Charger (1968 - 1979)
- Dodge D100 2wd 1/2 Ton (1970 - 1979)
- Dodge D150 2wd 1/2 Ton (1976 - 1993)
- Dodge D200 2wd 3/4 Ton (1967 - 1980)
- Dodge D250 2wd 3/4 Ton (1974 - 1993)
- Dodge D300 2wd 1 Ton (1974 - 1980)
- Dodge D350 2wd 1 Ton (1981 - 1989)
- Dodge Dakota (1997 - 2000)
- Dodge Diplomat (1977 - 1989)
- Dodge Durango (1998 - 2000)
- Dodge Magnum (1978 - 1983)
- Dodge Monaco (1966 - 1979)
- Dodge Polara (1973 - 1973)
- Dodge Ram 1500 1/2 Ton (1994 - 2000)
- Dodge Ram 2500 3/4 Ton (1994 - 2000)
- Dodge Ram Charger (1974 - 1993)
- Dodge Ram Van 1500 1/2 Ton (1974 - 2000)
- Dodge Ram Van 2500 3/4 Ton (1974 - 2000)
- Dodge Ram Van 3500 1 Ton (1978 - 1993)
- Dodge W100 1/2 Ton 4x4 (1986 - 1989)
- Dodge W150 1/2 Ton 4x4 (1977 - 1993)
- Dodge W200 3/4 Ton 4x4 (1969 - 1980)
- Dodge W250 3/4 Ton 4x4 (1981 - 1993)
- Dodge W300 1 Ton 4x4 (1974 - 1980)
- Dodge W350 1 Ton 4x4 (1981 - 1989)
- Plymouth Fury (1971 - 1978)
- Plymouth GTX (1967 - 1971)
- Plymouth Road Runner (1973 - 1980)
Specifics
- Cover Bolt Quantity: 12
- Differential Model: Chrysler 9.25"
- Carrier Spline Count: 31
- Pinion Shaft Diameter: 1.876 Inch
- Pinion Spline Count: 29
- Ring Gear Bolt Quantity: 12
- Ring Gear Diameter: 9.25 Inch
- Ring Gear Material: Heat Treated 8620 Steel
- Ring Gear Rotation: Standard
